Gas Control & Monitoring System

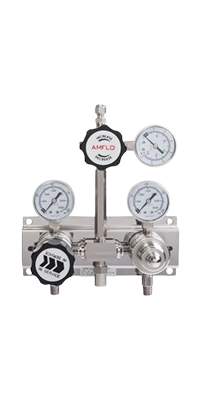

R1100 Series Changeover System

Features

  • Dual-bank gas supply
  • Inlet ports are 1/4” NPT(F)
  • Compatible with maniflex manifolds
  • 40-micron sintered wire mesh inlet filter
  • Bracket mounts
  • Available with optional remote alarm

Materials Of Construction

  • Regulator body - SS316L,Brass nickel plated
  • Regulator seat - PCTFE,PTFE,PEEK
  • Connection part - SS316

Specifications

  • Inlet pressure max. - 3000psig
  • Outlet pressure - 0~25psig,0~50psig,0~100psig,0~200psig
  • Proof pressure - 1.5X maximum inlet pressure
  • Operating temperature - -40˚F~+165˚F(-40˚C~+74˚C)
  • Regulator leak rate - 2x10^(-8) atm cc/sec He
  • Flow capacity C V - 0.08
  • Weight is 3.6kg
